Description
Portable bridge-mounted piezo for ukulele
UK-1 makes it simple to reproduce the authentic sound of your uke without modification.

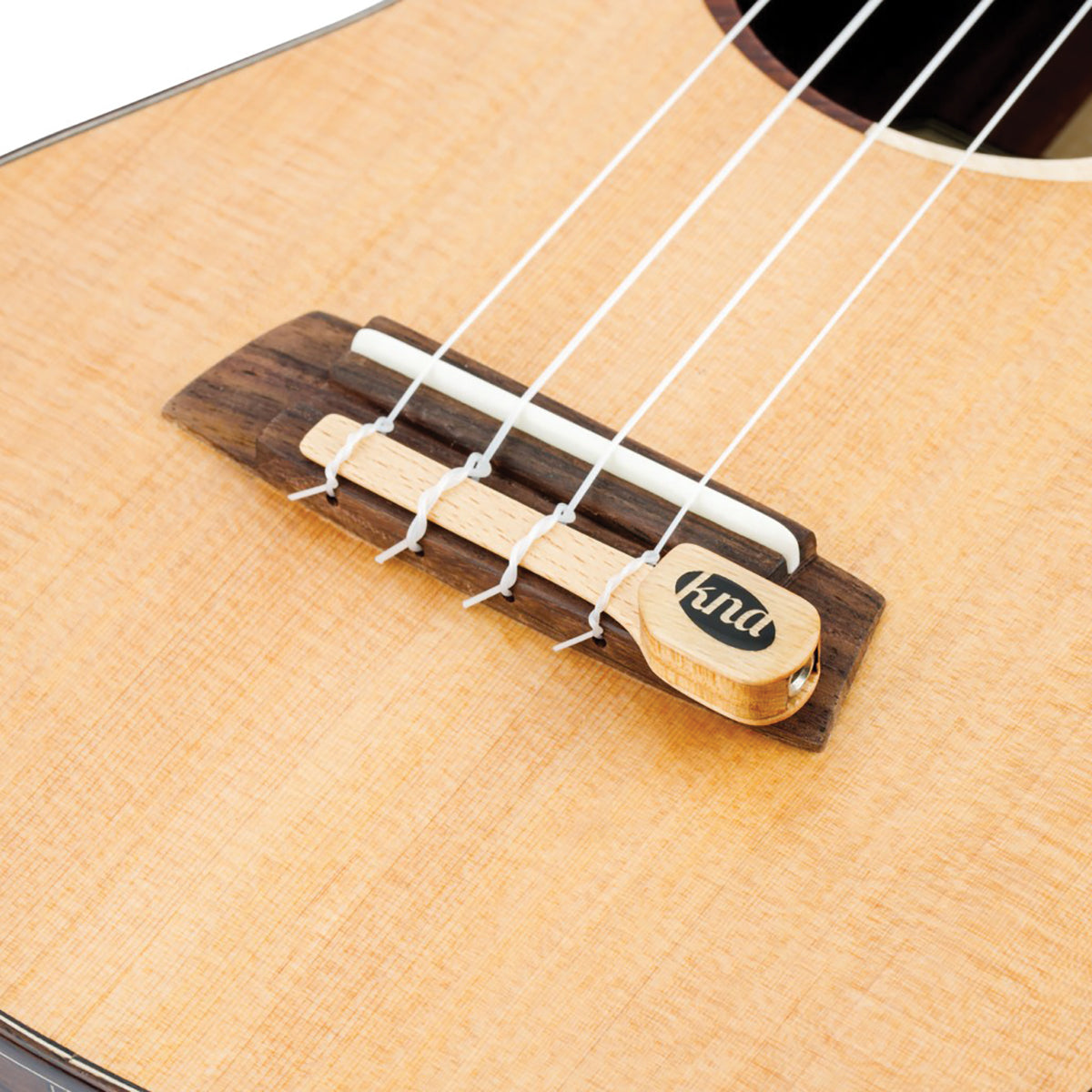

Simply slide this piezo ukulele pickup onto the tie block and retighten the strings.
It's a passive uke pickup that fits most soprano, concert, tenor, and baritone ukuleles with a tie block.
Features:
Installs with no modification
Simply slide this piezo ukulele pickup onto the tie block and retighten the strings.
Wood case
The piezo element is encased in elegant and stylish White beech while retaining lightweight assembly to achieve maximum tonal sensitivity.
Natural sound
UK-1 has a passive design that reproduces the natural sound of the with no need for a battery.

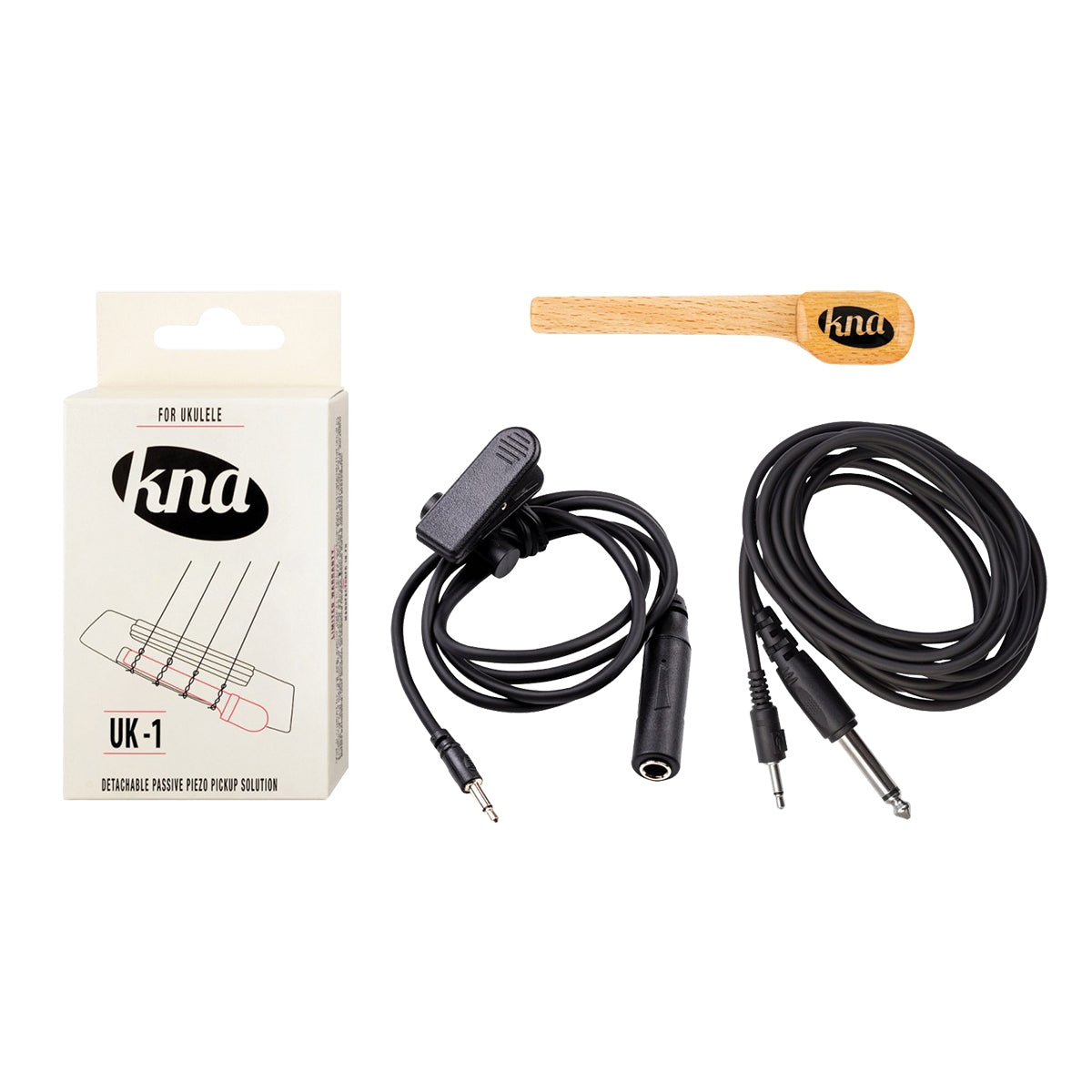

Cable included
A 1/8" to 1/4" cable is included for easy connection to an amplifier or mixer.
DOWNLOAD INSTALLATION INSTRUCTIONS HERE
| specifications | |
| Weight | 3.1g / 0.109oz |
| Overall length | 74____ / 2,91" |
| Height / jack housing | 9mm / 0.35" |
| Active element measurements | |
| Lenght | 55mm / 2.17" |
| Width | 7.75mm / 0.31" |
| Thicknes |
1.5mm ± 0.05mm 0.059" ± 0.002" |
| Wood | White beech |
| Maximum Impedance | 500 ã_ |
| Cable |
2.5meter / 8' |
